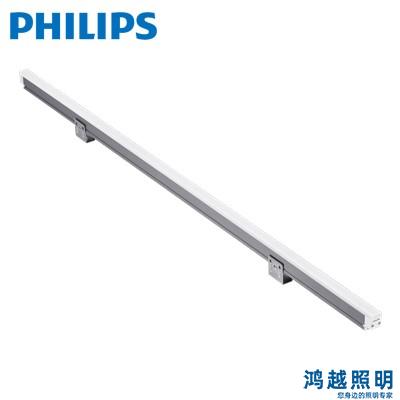

PHILIPS/飞利浦LED洗墙灯 BCS440 72LEDRGB40K24V OCL50 DMX 7.5W 911401711774

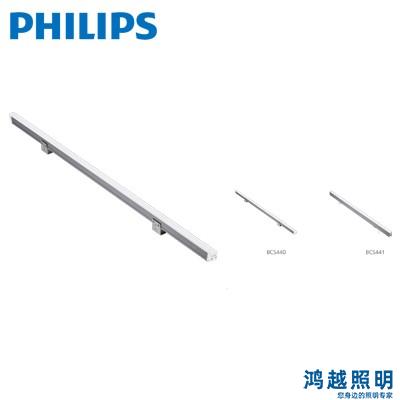

类别： UniBar Compact BCS440/441
室外照明 CRI＞80
低功率LED颗粒均匀分布，保证灯具表面出光均匀，无颗粒感
IP66/IK06
寿命：50,000 小时
产品描述：UniBar Compact是一款适用于表面安装,室外应用等级的线性LED直视照明灯具,专为立面和室外建筑照明应用而设计.坚固紧凑的灯体及独特的光学设计使成为建筑立面,媒体立面,桥梁等任何需要纤线性直视照明的最优解决方案.UniBar Compact提供白色,单彩色,RGB/RGBW和可调白光等选择,端到端的连接以及DMX控制选项都方便项目安装和调试.提供高达每米12ID像素点,助力建筑师和设计师
在线询价邮件

飞利浦LED洗墙灯 UniBar Compact BCS440 72LEDRGB40K24V OCL50 DMX 7.5W 911401711774

UniBar Compact是一款适用于表面安装,室外应用等级的线性LED直视照明灯具,专为立面和室外建筑照明应用而设计.坚固紧凑的灯体及独特的光学设计使成为建筑立面,媒体立面,桥梁等任何需要纤线性直视照明的最优解决方案.UniBarCompact提供白色,单彩色,RGB/RGBW和可调白光等选择,端到端的连接以及DMX控制选项都方便项目安装和调试.提供高达每米12ID像素点,助力建筑师和设计师自由探索和实现各种设计理念.

功率（Power）：7.5W

色温（Color temperature）:RGB40K

No. of LEDs (Mono/RGB):36

No. of LEDs (RGBW/tW):72

尺寸（Size）：500mm

重量： 0.4Kg

发光面：抗UV 防老化的亚克力PMMA发光面

显色指数（CRI） : ＞80Ra

输入电压:24 VDC

适用场景

产品特点

参数信息

产品型号	光源类型	12NC	产品型号	光源类型	12NC
BCS440 72LED30K24V OCL100 12PX 15W	LED	911401711504	BCS440 72LED30K24V OCL100 DMX 15W	LED	911401711514
BCS440 72LED30K24V OCL100 15W	LED	911401711524	BCS440 72LED40K24V OCL100 12PX 15W	LED	911401711534
BCS440 72LED40K24V OCL100 DMX 15W	LED	911401711544	BCS440 72LED40K24V OCL100 15W	LED	911401711554
BCS440 72LEDRGB24V OCL100 12PX 15W	LED	911401711564	BCS440 72LEDRGB24V OCL100 DMX 15W	LED	911401711574
BCS440 144LEDtW24V OCL100 12PX 15W	LED	911401711584	BCS440 144LEDtW24V OCL100 DMX 15W	LED	911401711594
BCS440 144LEDRGB30K24V OCL100 12PX 15W	LED	911401711604	BCS440 144LEDRGB30K24V OCL100 DMX 15W	LED	911401711614
BCS440 144LEDRGB40K24V OCL100 12PX 15W	LED	911401711624	BCS440 144LEDRGB40K24V OCL100 DMX 15W	LED	911401711634
BCS440 36LED30K24V OCL50 6PX 7.5W	LED	911401711644	BCS440 36LED30K24V OCL50 DMX 7.5W	LED	911401711654
BCS440 36LED30K24V OCL50 7.5W	LED	911401711664	BCS440 36LED40K24V OCL50 6PX 7.5W	LED	911401711674
BCS440 36LED40K24V OCL50 DMX 7.5W	LED	911401711684	BCS440 36LED40K24V OCL50 7.5W	LED	911401711694
BCS440 36LEDRGB24V OCL50 6PX 7.5W	LED	911401711704	BCS440 36LEDRGB24V OCL50 DMX 7.5W	LED	911401711714
BCS440 72LEDtW24V OCL50 6PX 7.5W	LED	911401711724	BCS440 72LEDtW24V OCL50 DMX 7.5W	LED	911401711734
BCS440 72LEDRGB30K24V OCL50 6PX 7.5W	LED	911401711744	BCS440 72LEDRGB30K24V OCL50 DMX 7.5W	LED	911401711754
BCS440 72LEDRGB40K24V OCL50 6PX 7.5W	LED	911401711764	BCS440 72LEDRGB40K24V OCL50 DMX 7.5W	LED	911401711774
BCS440 24LED30K24V OCL30 4PX 5W	LED	911401711784	BCS440 24LED30K24V OCL30 DMX 5W	LED	911401711794
BCS440 24LED30K24V OCL30 5W	LED	911401711804	BCS440 24LED40K24V OCL30 4PX 5W	LED	911401711814
BCS440 24LED40K24V OCL30 DMX 5W	LED	911401711824	BCS440 24LED40K24V OCL30 5W	LED	911401711834
BCS440 24LEDRGB24V OCL30 4PX 5W	LED	911401711844	BCS440 24LEDRGB24V OCL30 DMX 5W	LED	911401711854
BCS440 48LEDtW24V OCL30 4PX 5W	LED	911401711864	BCS440 48LEDtW24V OCL30 DMX 5W	LED	911401711874
BCS440 48LEDRGB30K24V OCL30 4PX 5W	LED	911401711884	BCS440 48LEDRGB30K24V OCL30 DMX 5W	LED	911401711894
BCS440 48LEDRGB40K24V OCL30 4PX 5W	LED	911401711904	BCS440 48LEDRGB40K24V OCL30 DMX 5W	LED	911401711914
BCS441 48LED30K24V OCL100 8PX 12W	LED	911401711924	BCS441 48LED30K24V OCL100 DMX 12W	LED	911401711934
BCS441 48LED30K24V OCL100 12W	LED	911401711944	BCS441 48LED40K24V OCL100 8PX 12W	LED	911401711954
BCS441 48LED40K24V OCL100 DMX 12W	LED	911401711964	BCS441 48LED40K24V OCL100 12W	LED	911401711974
BCS441 48LEDRGB24V OCL100 8PX 12W	LED	911401711984	BCS441 48LEDRGB24V OCL100 DMX 12W	LED	911401711994
BCS441 96EDRGB30K24V OCL100 8PX 12W	LED	911401712004	BCS441 96EDRGB30K24V OCL100 DMX 12W	LED	911401712014
BCS441 96EDRGB40K24V OCL100 8PX 12W	LED	911401712024	BCS441 96EDRGB40K24V OCL100 DMX 12W	LED	911401712034
BCS441 96EDtW24V OCL100 8PX 12W	LED	911401712044	BCS441 96EDtW24V OCL100 DMX 12W	LED	911401712054
BCS441 24LED30K24V OCL50 4PX 6W	LED	911401712064	BCS441 24LED30K24V OCL50 DMX 6W	LED	911401712074
BCS441 24LED30K24V OCL50 6W	LED	911401712084	BCS441 24LED40K24V OCL50 4PX 6W	LED	911401712094
BCS441 24LED40K24V OCL50 DMX 6W	LED	911401712104	BCS441 24LED40K24V OCL50 6W	LED	911401712114
BCS441 24LEDRGB24V OCL50 4PX 6W	LED	911401712124	BCS441 24LEDRGB24V OCL50 DMX 6W	LED	911401712134
BCS441 48EDRGB30K24V OCL50 4PX 6W	LED	911401712144	BCS441 48EDRGB30K24V OCL50 DMX 6W	LED	911401712154
BCS441 48EDRGB40K24V OCL50 4PX 6W	LED	911401712164	BCS441 48EDRGB40K24V OCL50 DMX 6W	LED	911401712174
BCS441 48EDtW24V OCL50 4PX 6W	LED	911401712184	BCS441 48EDtW24V OCL50 DMX 6W	LED	911401712194
BCS441 12LED30K24V OCL30 2PX 3W	LED	911401712204	BCS441 12LED30K24V OCL30 DMX 3W	LED	911401712214
BCS441 12LED30K24V OCL30 3W	LED	911401712224	BCS441 12LED40K24V OCL30 2PX 3W	LED	911401712234
BCS441 12LED40K24V OCL30 DMX 3W	LED	911401712244	BCS441 12LED40K24V OCL30 3W	LED	911401712254
BCS441 12LEDRGB24V OCL30 2PX 3W	LED	911401712264	BCS441 12LEDRGB24V OCL30 DMX 3W	LED	911401712274
BCS441 24EDRGB30K24V OCL30 2PX 3W	LED	911401712284	BCS441 24EDRGB30K24V OCL30 DMX 3W	LED	911401712294
BCS441 24EDRGB40K24V OCL30 2PX 3W	LED	911401712304	BCS441 24EDRGB40K24V OCL30 DMX 3W	LED	911401712314
BCS441 24EDtW24V OCL30 2PX 3W	LED	911401712324	BCS441 24EDtW24V OCL30 DMX 3W	LED	911401712334
