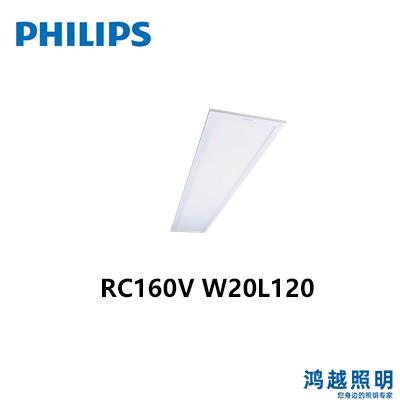

飞利浦LED灯盘/面板灯RC160V LED20S 840 W20L120 PSU 911401719472
高效节能
多种智联方案可选：IAP, IAO, PoE, TW,WIA
IP等级
IP20/IP40(前部）
电气保护等级
CLASS II（PSU）,CLASS I（PSD WIA）
尺寸
SP：597x597mm；1197x297mm，1195x595mm，1197x202mm
产品详情 <>
<>
功率(power) ：20W
色温（Color temperature）：4000K
流明(lumen）：2000lm
寿命（life） ：100000H
系统效率（Flex）：110lm/w
显色指数（CRI） : >80Ra
尺寸（Size）: 1195*200*8.3mm
驱动：固定输出
眩光值:＜22
3.CD表示单向下发光连续版，CI表示上下发光连续版，SI表示上下发光独立版 宽配光/上下出光（悬吊式）
4.OC表示UGR<19, UGR16表示UGR<16
5.IP44表示前面板IP44
适用场景 <>
<>
参数信息 <>
参数信息<>
<>
|
灯具型号<> |
光源类型<> | 12NC<> | 灯具型号<> | 光源类型<> | 12NC<> |
|
RC160V LED40S 865 W60L60 PSD
|
LED | 911401720812 |
RC160V LED40S 840 W60L60 PSD
|
LED | 911401720802 |
|
RC160V LED40S 840 W60L60 PCV
|
LED |
911401719542 |
RC160V LED40S 840 W30L120 PSU
|
LED |
911401719522 |
|
RC160V LED40S 865 W60L60 PSU
|
LED |
911401719512 |
RC160V LED40S 840 W60L60 PSU
|
LED |
911401719502 |
|
RC160V LED30S 865 W60L60 PSU
|
LED |
911401719492 |
RC160V LED30S 840 W60L60 PSU
|
LED |
911401719482 |
|
RC160V LED20S 840 W20L120 PSU
|
LED |
911401719472 |
RC160V LED60S 840 W60L120 PSU
|
LED |
911401719532 |
|
RC160V LED40S 840 W60L60 CPC
|
LED |
911401719552 |
RC160V LED29S 840 W60L60 PSU UGR16
|
LED |
911401726842 |
|
RC160V LED29S 840 W30L120 PSU UGR16
|
LED |
911401726852 |
SP160P LED40S 840 W60L60 PSU
|
LED |
911401726922 |
|
SP160P LED20S 840 W20L120 PSU
|
LED |
911401726932 |
SP160P LED60S 840 W60L120 PSU
|
LED |
911401726952 |
|
SP160P LED20S 840 W20L120 PSU CD
|
LED |
911401726962 |
SP160P LED40S 840 W30L120 PSU
|
LED |
911401726942 |
|
SP160P LED20S 840 W20L120 PSU CI
|
LED |
911401726972 |
RC160V LED40S 840 W60L60 PSU OC IP44
|
LED |
911401726862 |
|
RC160V LED20S 840 W20L120 PSU OC IP44
|
LED |
911401726872 |
RC160V LED40S 840 W30L120 PSU OC IP44
|
LED |
911401726882 |
|
RC160V LED60S 840 W60L120 PSU OC IP44
|
LED |
911401726892 |
RC160X LED40S 840 W60L60 IAP OC IP44
|
LED |
911401728602 |
|
RC160X LED40S 840 W60L60 IAO
|
LED |
911401728622 |
RC160X LED40S 840 W60L60 OC IAO
|
LED |
911401755102 |
|
RC160X LED40S 840 W30L120 IAO
|
LED |
911401755112 |
RC160X LED40S 840 W30L120 OC IAO
|
LED |
911401755122 |
|
RC160X LED40S 865 W30L120 OC IAO
|
LED |
911401757222 |
RC160X LED40S 840 W60L60 POE SL OC IP44
|
LED |
911401728572 |
|
RC160X LED40S 840 W60L60 POE MA
|
LED |
911401728582 |
RC160X LED40S 840 W60L60 POE SL
|
LED |
911401728592 |
|
RC160X LED40S 840 W60L60 POE MA OC
|
LED |
911401755962 |
RC160X LED40S 840 W60L60 POE SL OC
|
LED |
911401755972 |
|
RC160X LED40S 840 W60L60 SW
|
LED |
911401755942 |
RC160X LED40S 840 W60L60 OC SW
|
LED |
911401755982 |
|
RC160X LED40S 840 W30L120 OC SW
|
LED |
911401755992 |
RC160X LED40S 840 W30L120 SW
|
LED |
911401756002 |
|
RC160X LED40S TW W60L60 PSD
|
LED |
911401728632 |
RC160X LED40S TW W60L60 PSD OC IP44
|
LED |
911401728642 |
|
SP160X LED20S TW W20L120 PSD CD
|
LED |
911401728652 |
SP160P LED40S 840 W60L60 PSU SI
|
LED |
911401726902 |
|
SP160P LED40S 840 W30L120 PSU SI
|
LED |
911401726912 |
SP160P LED20S 840 W20L120 PSU CI
|
LED |
911401726972 |
