飞利浦LED格栅灯RS386B S10 P20 935 PSD-E WB WH 911401523302

飞利浦LED格栅灯RS386B S10 P20 935 PSD-E WB WH 911401523302

类别： RS386B
室内照明 CRI 90
线性灯窄边框格栅灯
嵌装 10头 DALI调光
50000小时寿命
产品描述：飞利浦LED格栅灯 GreenSpace SM386C ,LED线性灯,飞利浦室内工程灯具,飞利浦线性灯,philips格栅灯,嵌入式安装,50000小时超长寿命,DALI调光
在线询价邮件

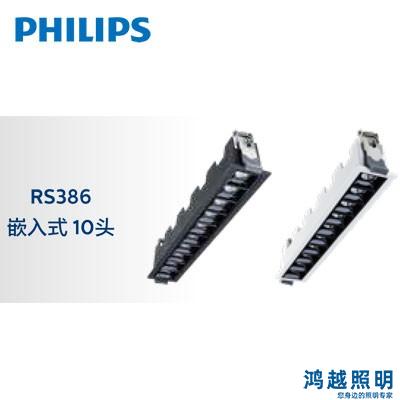

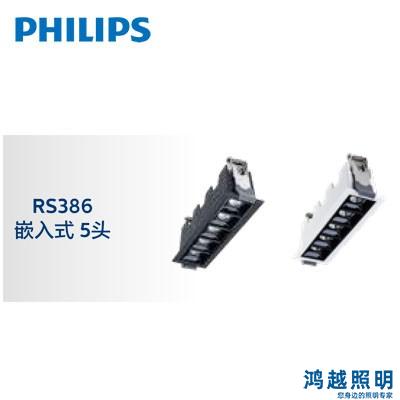

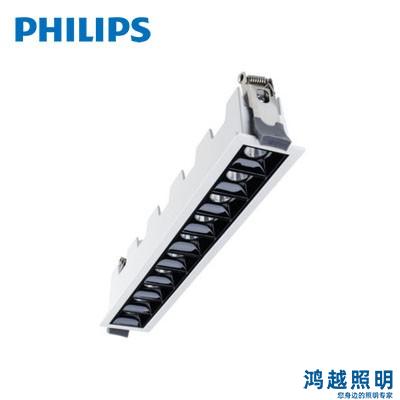

飞利浦LED格栅灯 GreenSpace RS386B S10 P20 935 PSD-E WB WH 911401523302

GreenSpace线条射灯是一款全新的产品系列，有多种模组可供选择，为不同的室内场合如办公室、零售和酒店，提供了多样化应用。该系列提供表面安装和嵌入式安装，具有高显指CRI90和3个不同的光束角度，极大的满足室内应用的照明要求。Dali和1-10V控制接口为未来的系统连接提供了途径。

产品详情

功率(power) ：20W

色温（Color temperature）：3500K

寿命（life）：50000H

系统效率（Flex）：64lm/w

显色指数（CRI） : 90Ra

尺寸（Size）: 280*45*48mm

开孔尺寸：（270-273）*（35-38）

格栅头数：10头

光束角：45°

控制方式：DALI调光

安装方式：嵌入式安装

适用场景

参数信息

产品型号	光源类型	12NC	产品型号	光源类型	12NC
RS386B S5 P10 930 PSU-E NB WH	LED	911401510202	RS386B S5 P10 930 PSU-E MB WH	LED	911401510302
RS386B S5 P10 930 PSU-E WB WH	LED	911401516002	RS386B S5 P10 935 PSU-E NB WH	LED	911401510502
RS386B S5 P10 935 PSU-E MB WH	LED	911401510602	RS386B S5 P10 935 PSU-E WB WH	LED	911401510702
RS386B S5 P10 940 PSU-E WB WH	LED	911401510802	RS386B S5 P10 930 PSU-E NB BK	LED	911401510902
RS386B S5 P10 930 PSU-E MB BK	LED	911401511002	RS386B S5 P10 930 PSU-E WB BK	LED	911401511102
RS386B S5 P10 935 PSU-E NB BK	LED	911401511202	RS386B S5 P10 935 PSU-E MB BK	LED	911401511302
RS386B S5 P10 935 PSU-E WB BK	LED	911401511402	RS386B S5 P10 940 PSU-E WB BK	LED	911401511502
RS386B S10 P20 930 PSU-E NB WH	LED	911401511602	RS386B S10 P20 930 PSU-E MB WH	LED	911401511702
RS386B S10 P20 930 PSU-E WB WH	LED	911401511802	RS386B S10 P20 935 PSU-E NB WH	LED	911401511902
RS386B S10 P20 935 PSU-E MB WH	LED	911401512002	RS386B S10 P20 935 PSU-E WB WH	LED	911401512102
RS386B S10 P20 940 PSU-E WB WH	LED	911401512202	RS386B S10 P20 930 PSU-E NB BK	LED	911401512302
RS386B S10 P20 930 PSU-E MB BK	LED	911401512402	RS386B S10 P20 930 PSU-E WB BK	LED	911401512502
RS386B S10 P20 935 PSU-E NB BK	LED	911401512602	RS386B S10 P20 935 PSU-E MB BK	LED	911401512702
RS386B S10 P20 935 PSU-E WB BK	LED	911401512802	RS386B S10 P20 940 PSU-E WB BK	LED	911401512902
RS386B S5 P10 930 PSR-E NB WH	LED	911401513002	RS386B S5 P10 930 PSR-E MB WH	LED	911401513102
RS386B S5 P10 930 PSR-E WB WH	LED	911401513202	RS386B S5 P10 935 PSR-E NB WH	LED	911401513302
RS386B S5 P10 935 PSR-E MB WH	LED	911401513402	RS386B S5 P10 935 PSR-E WB WH	LED	911401513502
RS386B S5 P10 940 PSR-E WB WH	LED	911401513602	RS386B S5 P10 930 PSR-E NB BK	LED	911401513702
RS386B S5 P10 930 PSR-E MB BK	LED	911401513802	RS386B S5 P10 930 PSR-E WB BK	LED	911401513902
RS386B S5 P10 935 PSR-E NB BK	LED	911401514002	RS386B S5 P10 935 PSR-E MB BK	LED	911401514102
RS386B S5 P10 935 PSR-E WB BK	LED	911401514202	RS386B S5 P10 940 PSR-E WB BK	LED	911401514302
RS386B S10 P20 930 PSR-E NB WH	LED	911401514402	RS386B S10 P20 930 PSR-E MB WH	LED	911401514502
RS386B S10 P20 930 PSR-E WB WH	LED	911401514602	RS386B S10 P20 935 PSR-E NB WH	LED	911401514702
RS386B S10 P20 935 PSR-E MB WH	LED	911401514802	RS386B S10 P20 935 PSR-E WB WH	LED	911401514902
RS386B S10 P20 940 PSR-E WB WH	LED	911401515002	RS386B S10 P20 930 PSR-E NB BK	LED	911401515102
RS386B S10 P20 930 PSR-E MB BK	LED	911401515202	RS386B S10 P20 930 PSR-E WB BK	LED	911401515302
RS386B S10 P20 935 PSR-E NB BK	LED	911401515402	RS386B S10 P20 935 PSR-E MB BK	LED	911401515502
RS386B S10 P20 935 PSR-E WB BK	LED	911401515602	RS386B S10 P20 940 PSR-E WB BK	LED	911401515702
RS386B S5 P10 930 PSD-E NB WH	LED	911401521402	RS386B S5 P10 930 PSD-E MB WH	LED	911401521502
RS386B S5 P10 930 PSD-E WB WH	LED	911401521602	RS386B S5 P10 935 PSD-E NB WH	LED	911401521702
RS386B S5 P10 935 PSD-E MB WH	LED	911401521802	RS386B S5 P10 935 PSD-E WB WH	LED	911401521902
RS386B S5 P10 940 PSD-E WB WH	LED	911401522002	RS386B S5 P10 930 PSD-E NB BK	LED	911401522102
RS386B S5 P10 930 PSD-E MB BK	LED	911401522202	RS386B S5 P10 930 PSD-E WB BK	LED	911401522302
RS386B S5 P10 935 PSD-E NB BK	LED	911401522402	RS386B S5 P10 935 PSD-E MB BK	LED	911401522502
RS386B S5 P10 935 PSD-E WB BK	LED	911401522602	RS386B S5 P10 940 PSD-E WB BK	LED	911401522702
RS386B S10 P20 930 PSD-E NB WH	LED	911401522802	RS386B S10 P20 930 PSD-E MB WH	LED	911401522902
RS386B S10 P20 930 PSD-E WB WH	LED	911401523002	RS386B S10 P20 935 PSD-E NB WH	LED	911401523102
RS386B S10 P20 935 PSD-E MB WH	LED	911401523202	RS386B S10 P20 935 PSD-E WB WH	LED	911401523302
RS386B S10 P20 940 PSD-E WB WH	LED	911401523402	RS386B S10 P20 930 PSD-E NB BK	LED	911401523502
RS386B S10 P20 930 PSD-E MB BK	LED	911401523602	RS386B S10 P20 930 PSD-E WB BK	LED	911401523702
RS386B S10 P20 935 PSD-E NB BK	LED	911401523802	RS386B S10 P20 935 PSD-E MB BK	LED	911401523902
RS386B S10 P20 935 PSD-E WB BK	LED	911401524002	RS386B S10 P20 940 PSD-E WB BK	LED	911401524102
